Pressure Leaf Filter
A Pressure Leaf Filter is an enclosed industrial filtration system designed for efficient liquid-solid separation under pressure. It uses multiple filter leaves installed inside a pressure vessel to retain suspended solids while allowing clarified liquid to pass through the filter elements.
Pressure leaf filters are widely used for clarification, polishing filtration, and solid-liquid separation in edible oil refining, chemical processing, petrochemical production, food and beverage processing, mining, metal treatment, molten sulfur filtration, and other industrial applications.
SEPARATECH provides vertical pressure leaf filters, horizontal pressure leaf filters, customized filter leaves, and replacement filter elements for new installations as well as existing filtration equipment.
Our Pressure Leaf Filter Products
The pressure leaf filter systems and components available from SEPARATECH cover different industrial filtration requirements, from complete pressure filtration systems to individual replacement filter elements.
The product range includes vertical and horizontal pressure leaf filters, as well as customized filter leaves and replacement elements for existing equipment.

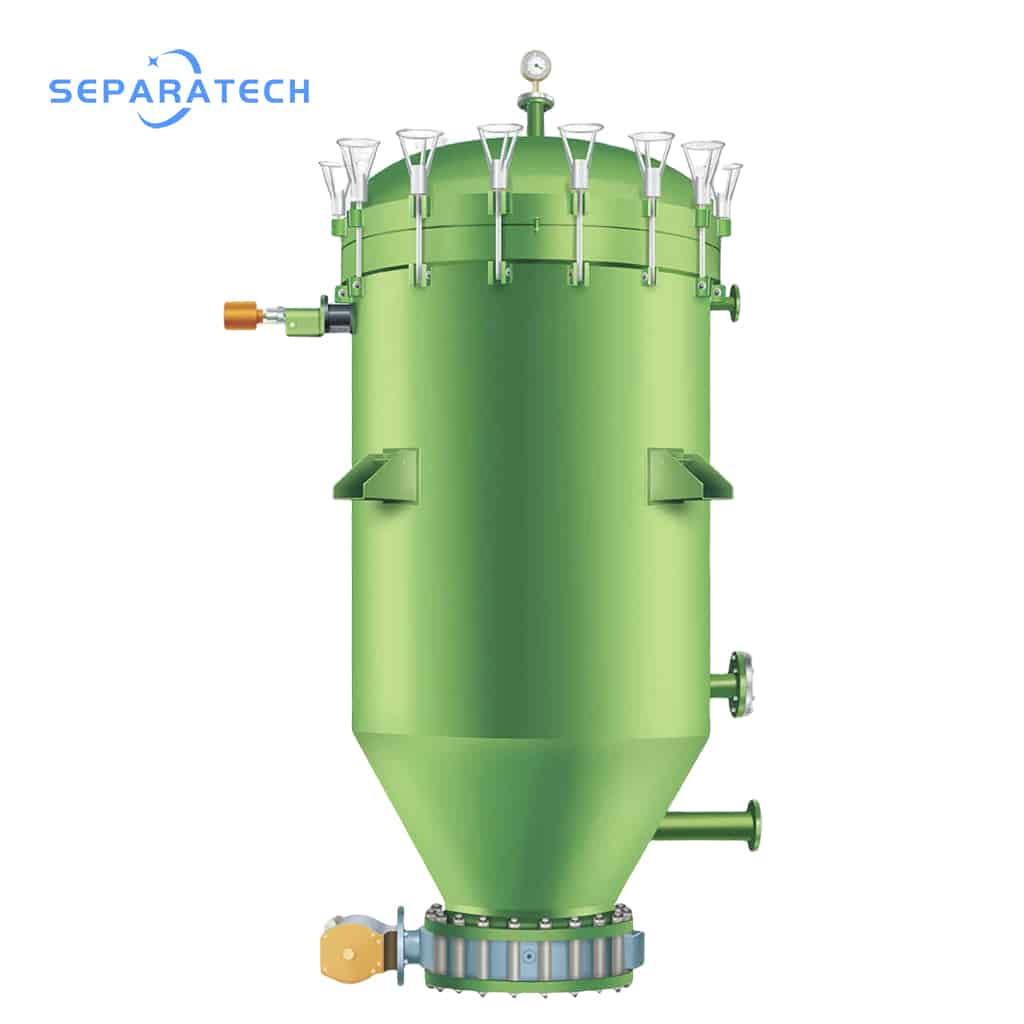

Vertical Pressure Leaf Filter
Industrial Vertical Pressure Leaf Filter for efficient liquid-solid separation, high filtrate clarity and compact installation. Available with customized filter leaves and dry or wet cake discharge.

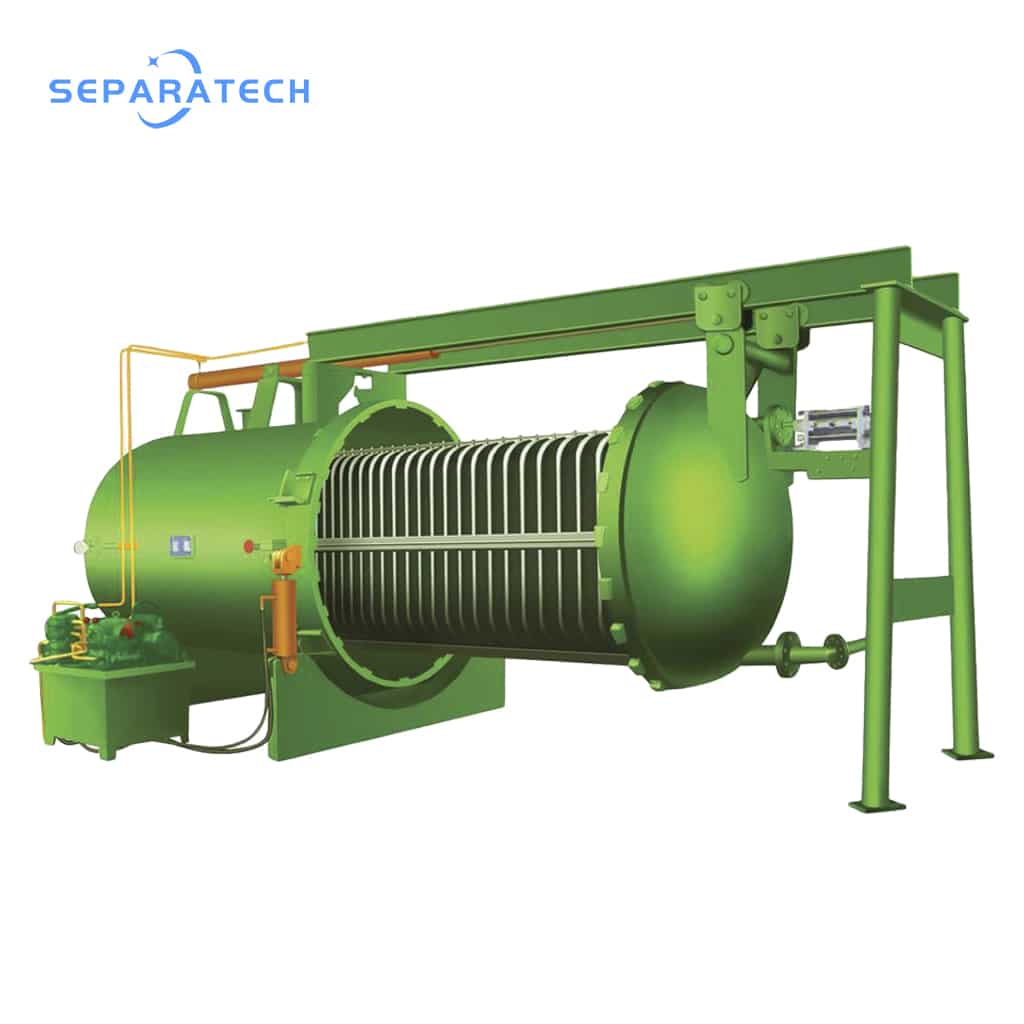

Horizontal Pressure Leaf Filter
Industrial Horizontal Pressure Leaf Filter designed for high-capacity liquid-solid separation. Customized filter leaves, retractable design, and dry or wet cake discharge solutions available.

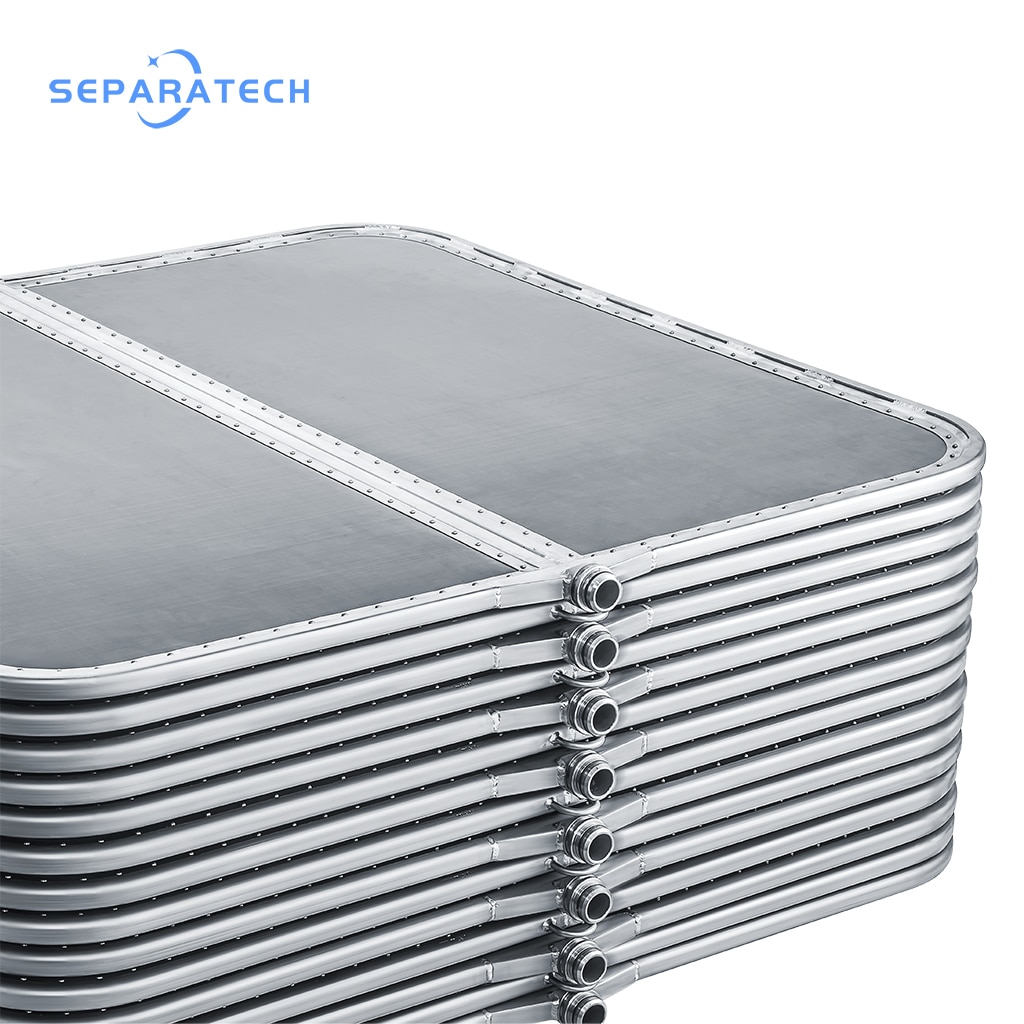

Leaf Filter Elements
Leaf Filter Elements for vertical and horizontal pressure leaf filters, including customized filter leaves, replacement elements, rescreening, and stainless steel mesh solutions for industrial filtration.
What Is a Pressure Leaf Filter?
A pressure leaf filter is a closed filtration vessel containing multiple leaf-shaped filter elements. During operation, the liquid is introduced into the vessel under pressure and flows through the filter cake and filter leaves.
The suspended solids are retained on the surface of the filter leaves, while the clarified liquid passes through the filter media and is collected through the internal filtrate system.
Unlike conventional open filtration systems, a pressure leaf filter operates as an enclosed system. This makes it particularly suitable for industrial processes where product containment, reduced liquid loss, controlled operating conditions, and high filtrate clarity are important.
How Does a Pressure Leaf Filter Work?
The filtration process normally consists of several stages, depending on the application and process design.
Precoating
For applications requiring filter aid, the filter leaves are initially precoated with a suitable filtration medium such as diatomaceous earth, perlite, or cellulose.
The precoat forms a porous filtration layer over the filter leaves and helps achieve the required filtrate clarity.
Pressure Filtration
The unfiltered liquid is pumped into the pressure vessel.
As pressure is applied, the liquid passes through the filter cake and filter leaf elements. Suspended solids are retained on the filtration surface while the clarified liquid enters the internal drainage system.
Cake Formation
As filtration continues, solids gradually accumulate on the filter leaves and form a filter cake.
The cake itself becomes an important part of the filtration medium and can improve the removal of fine particles as the filtration cycle progresses.
Cake Discharge
When the filtration cycle reaches its defined endpoint, the liquid supply is stopped and the filter can be prepared for cake discharge.
Depending on the equipment design and process requirements, the filter cake can be discharged in either dry or wet form.
Vertical and Horizontal Pressure Leaf Filters
Pressure leaf filters are generally available in two main configurations: vertical pressure leaf filters and horizontal pressure leaf filters.

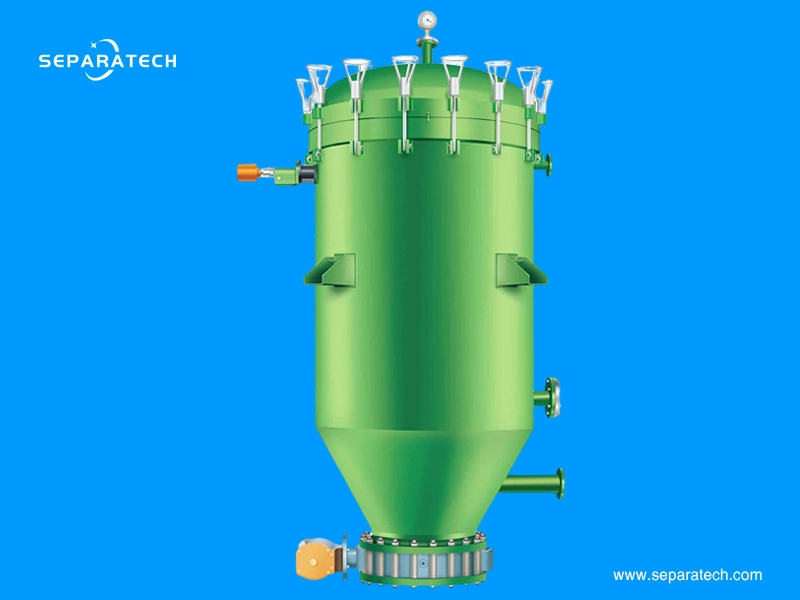

Vertical Pressure Leaf Filter
A vertical pressure leaf filter contains a vertically arranged group of filter leaves inside a pressure vessel.
Its compact footprint makes the vertical configuration particularly attractive where floor space is limited but sufficient overhead clearance is available.
Vertical pressure leaf filters are commonly used for applications such as edible oil filtration, chemical processing, food and beverage clarification, and other industrial liquid-solid separation processes.
Internal link: Vertical Pressure Leaf Filter

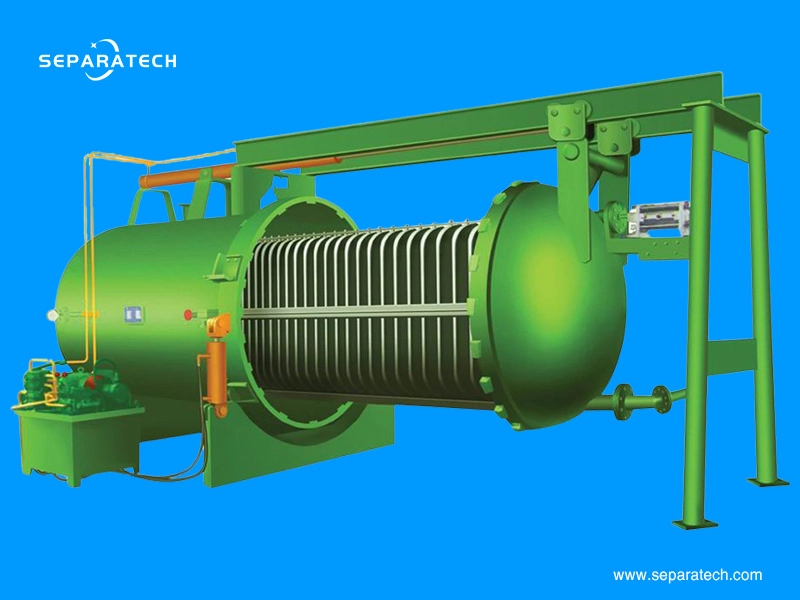

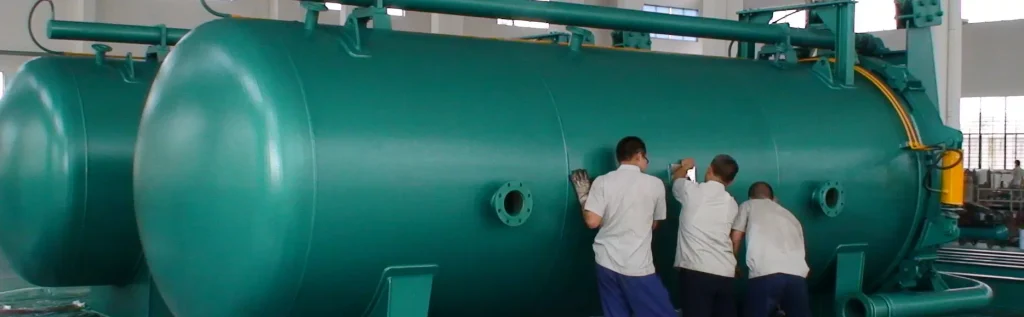

Horizontal Pressure Leaf Filter
A horizontal pressure leaf filter uses a horizontally arranged filter leaf assembly inside the pressure vessel.
The horizontal configuration can provide a large filtration area and is suitable for applications requiring higher filtration capacity or specific cake-handling arrangements.
Horizontal pressure leaf filters are widely used in industrial processes including edible oil refining, molten sulfur filtration, chemical processing, and other demanding filtration applications.
Internal link: Horizontal Pressure Leaf Filter
Pressure Leaf Filter Elements
The filter leaves are the core filtration components inside a pressure leaf filter.
A typical filter leaf consists of a supporting structure and one or more layers of filtration mesh. The construction can be customized according to the process liquid, particle characteristics, filtration requirements, operating pressure, temperature, and cake discharge method.
SEPARATECH supplies customized and replacement leaf filter elements for both vertical and horizontal pressure leaf filters.
Multi-Layer Filter Leaf Construction
Industrial filter leaves can use multi-layer stainless steel mesh structures to provide the required combination of filtration performance, mechanical strength, and durability.
Depending on the application, materials can include stainless steel grades such as 304, 316L, and 904L, as well as other alloys for more demanding chemical environments.
Customized Filter Mesh
Different filtration processes require different mesh structures and filtration characteristics.
Common mesh constructions can include Plain Dutch Weave, Plain Weave, Reversed Plain Dutch Weave, and Twilled Weave, depending on the required filtration performance and mechanical conditions.
Replacement Filter Leaves
Replacement filter leaves can be manufactured for existing pressure leaf filtration equipment based on the original filter leaf dimensions, connection arrangement, filtration area, mesh construction, and material requirements.
This allows existing filtration equipment to be maintained or refurbished without necessarily replacing the complete pressure vessel.
Internal link: Leaf Filter Elements
Applications of Pressure Leaf Filters
Pressure leaf filters are used across a wide range of industries where efficient liquid-solid separation and high filtrate clarity are required.
Edible Oil Refining
Pressure leaf filters are widely used in edible oil processing, particularly for removing bleaching earth and other fine solids after the bleaching process.
The enclosed filtration system helps reduce product exposure and can provide efficient recovery of filtered oil.
Chemical Processing
Chemical production often requires filtration of process liquids containing suspended solids, catalyst particles, precipitates, or other contaminants.
Pressure leaf filters can be configured with suitable filter leaf materials and filtration media according to the chemical environment.
Molten Sulfur Filtration
Pressure leaf filters can be designed for molten sulfur filtration where elevated operating temperatures and enclosed handling are important.
Specialized filter construction and heating arrangements can be incorporated according to the process requirements.
Food and Beverage Processing
Pressure leaf filters can be used for clarification and polishing filtration in applications involving products such as beverages, sweeteners, and other process liquids.
Mining and Metal Processing
Pressure leaf filtration can also be applied to process liquids in mining and metallurgical operations where suspended solids need to be removed before downstream processing.
Advantages of Pressure Leaf Filtration
Pressure leaf filters offer several advantages for industrial liquid-solid separation.
Enclosed Filtration
The filtration process takes place inside a closed pressure vessel, helping contain the process liquid and reducing exposure to the surrounding environment.
High Filtration Area
Multiple filter leaves can be installed within a relatively compact vessel, providing a substantial filtration area within a limited footprint.
High Filtrate Clarity
The combination of filter media and accumulated filter cake can provide effective removal of suspended particles and fine solids.
Reduced Filter Media Consumption
Unlike conventional systems based on disposable filter cloth, pressure leaf filters use reusable filter leaf elements.
Dry or Wet Cake Discharge
Depending on the process and equipment configuration, filter cake can be discharged in dry or wet form.
Suitable for Automation
Pressure leaf filtration systems can be integrated with pumps, valves, pressure instrumentation, hydraulic systems, pneumatic equipment, and control systems for automated operation.
Pressure Vessel Design and Standards
Pressure leaf filters are enclosed pressure filtration systems, and the design of the pressure vessel should take into account the applicable pressure vessel codes and regulations for the intended market and operating conditions. ASME BPVC Section VIII provides rules for the design, fabrication, inspection, testing, and certification of pressure vessels. ASME BPVC Section VIII – Pressure Vessels
How to Select a Pressure Leaf Filter
Selecting the correct pressure leaf filter requires more than simply specifying the required filtration area.
The filtration system should be designed according to the complete process and operating conditions.
Process Liquid
The composition, viscosity, temperature, corrosiveness, and other characteristics of the liquid should be considered when selecting the filter vessel, filter leaves, seals, and other wetted components.
Solids Loading
The concentration, particle size, compressibility, and characteristics of the suspended solids affect filtration cycle length, cake formation, and cake discharge.
Required Filtration Capacity
The required flow rate and filtration cycle determine the required filtration area and filter configuration.
Filtrate Quality
The required outlet clarity or particle removal level affects the selection of filter leaf construction, mesh structure, and filter aid.
Cake Discharge Method
The appropriate discharge system depends on whether the filter cake needs to be recovered, dried, pumped away, or disposed of as a wet cake.
Pressure Leaf Filter Replacement and Maintenance
Proper maintenance of the pressure vessel and filter leaves is essential for stable filtration performance. Over time, filter leaves can become fouled or damaged, while seals, gaskets, valves, hydraulic components, and other parts may require inspection or replacement. Regular cleaning of filter leaves helps maintain filtration capacity and can extend the service life of the filtration system.
For existing equipment, replacement filter leaves or filter leaf rescreening can be considered when the original filter elements are worn or damaged.
Internal links:
- Pressure Leaf Filter Maintenance and Filter Leaf Cleaning
- Filter Leaves and Spare Parts
- Replacement Pressure Leaf Filter Elements
Pressure Leaf Filter Solutions for Existing Equipment
Replacing an entire pressure leaf filtration system is not always necessary when the main problem is worn or damaged filter elements.
SEPARATECH can manufacture replacement filter leaves according to existing equipment requirements, including filter leaf dimensions, filtration area, mesh construction, material, connection arrangement, and other relevant specifications.
Replacement and rescreening solutions can be considered for a wide range of existing pressure leaf filter configurations.
For compatibility with existing equipment, the original filter model, filter leaf drawings, photographs, dimensions, or sample components can be used to determine the appropriate replacement configuration.
Why Choose SEPARATECH for Pressure Leaf Filters?
SEPARATECH focuses on industrial filtration and separation equipment, with pressure leaf filters and filter leaf elements forming an important part of its product range.
Our solutions cover:
- Vertical pressure leaf filters
- Horizontal pressure leaf filters
- Pressure leaf filter elements
- Customized filter leaves
- Replacement filter elements
- Filter leaf rescreening
- Pressure leaf filter spare parts
- Application-specific filtration solutions
The objective is not simply to supply a filter vessel, but to provide a filtration solution that matches the process requirements, equipment configuration, and long-term maintenance needs of the application.
Frequently Asked Questions About Pressure Leaf Filters
What is a pressure leaf filter?
A pressure leaf filter is an enclosed liquid-solid separation system that uses multiple filter leaf elements installed inside a pressure vessel. Liquid passes through the filter cake and filter leaves while suspended solids are retained.
What industries use pressure leaf filters?
Pressure leaf filters are used in edible oil refining, chemical processing, petrochemical production, food and beverage processing, mining, metal treatment, molten sulfur filtration, and other industrial applications.
What is the difference between a vertical and horizontal pressure leaf filter?
A vertical pressure leaf filter generally provides a compact footprint with vertically arranged filter leaves, while a horizontal pressure leaf filter uses a horizontal filter leaf assembly and is often selected for larger filtration areas or specific cake discharge requirements.
Can pressure leaf filter elements be replaced?
Yes. Replacement filter leaves can be manufactured according to the dimensions, material, mesh structure, filtration area, and connection requirements of existing equipment.
Can damaged filter leaves be rescreened?
Depending on the condition and construction of the filter leaf, rescreening or refurbishment may be possible. The filter leaf should be inspected to determine whether rescreening is technically appropriate.
How do I select the right pressure leaf filter?
Selection should consider the process liquid, flow rate, solids loading, filtration performance, operating temperature and pressure, filter cake characteristics, and required cake discharge method.
Pressure Leaf Filter Manufacturer and Replacement Filter Element Supplier
Whether you are selecting a new pressure leaf filter, replacing existing filter leaves, or looking for a customized filtration solution, the correct filter configuration should be based on the actual process conditions and equipment requirements.
Explore our pressure leaf filter products above or contact SEPARATECH to discuss your filtration application, replacement filter leaf requirements, or customized pressure filtration solution.
